Biological Microscope DG2018
- Product description: Biological Microscope DG2018
PRODUCT INTRODUCTION

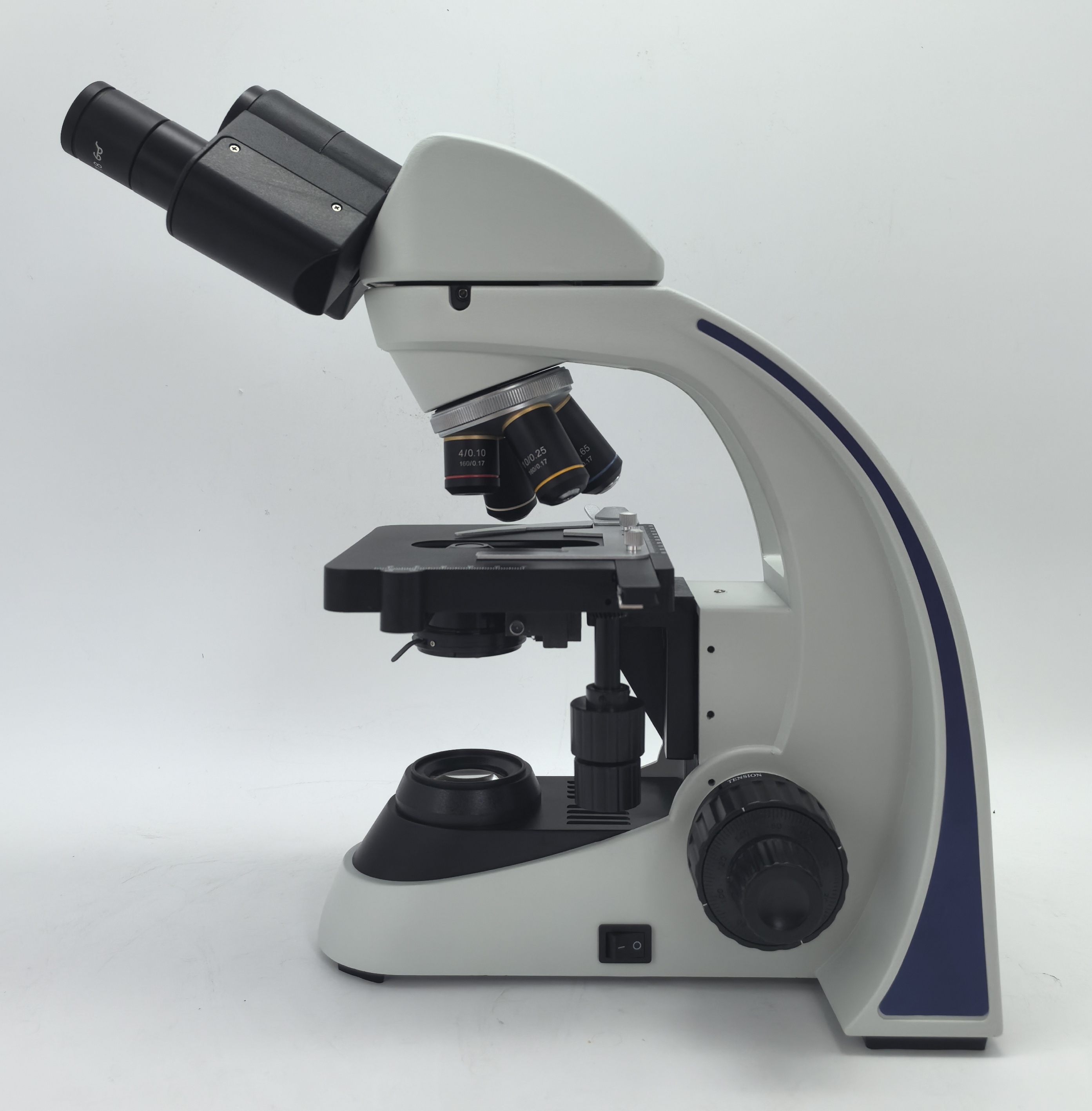

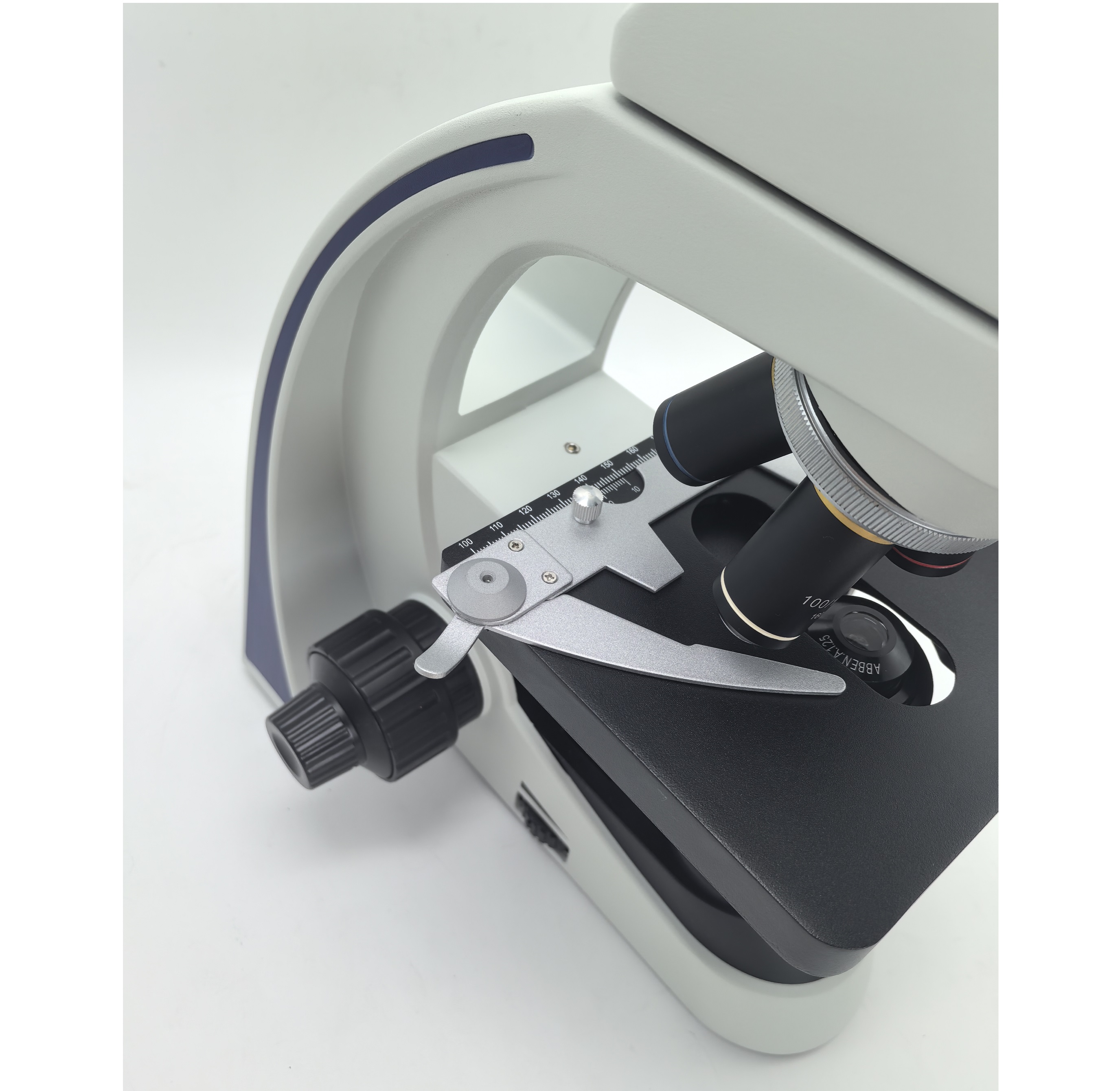

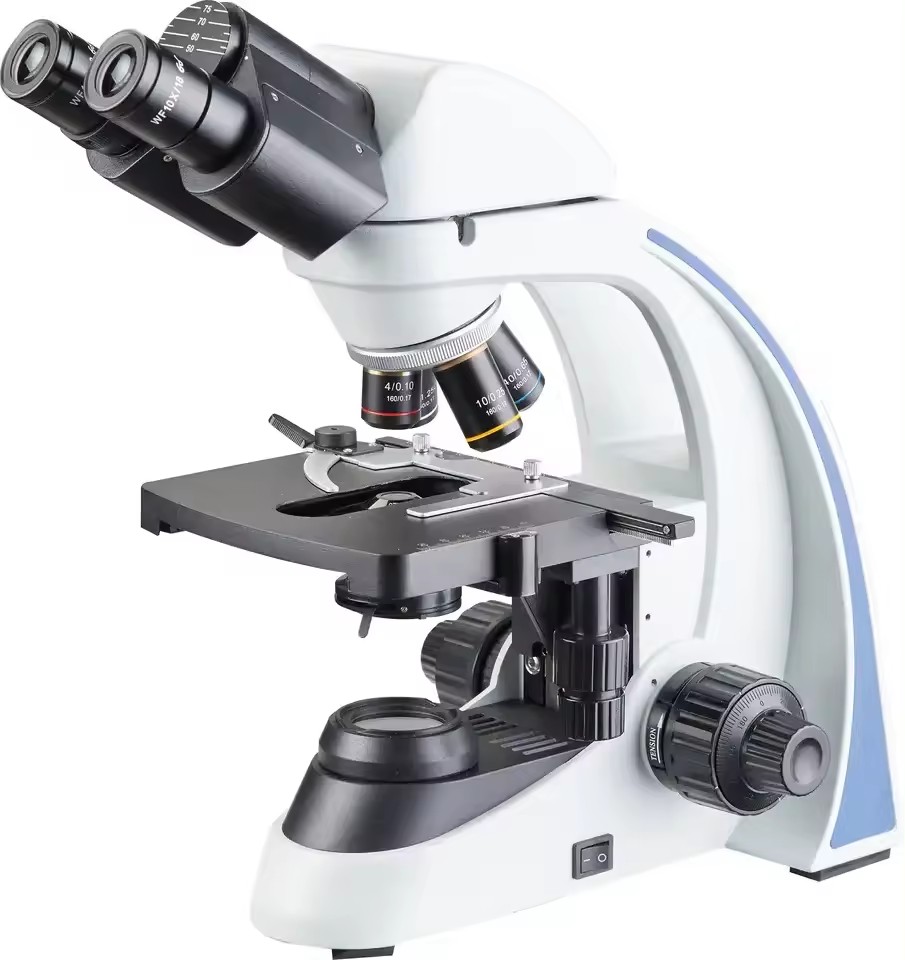

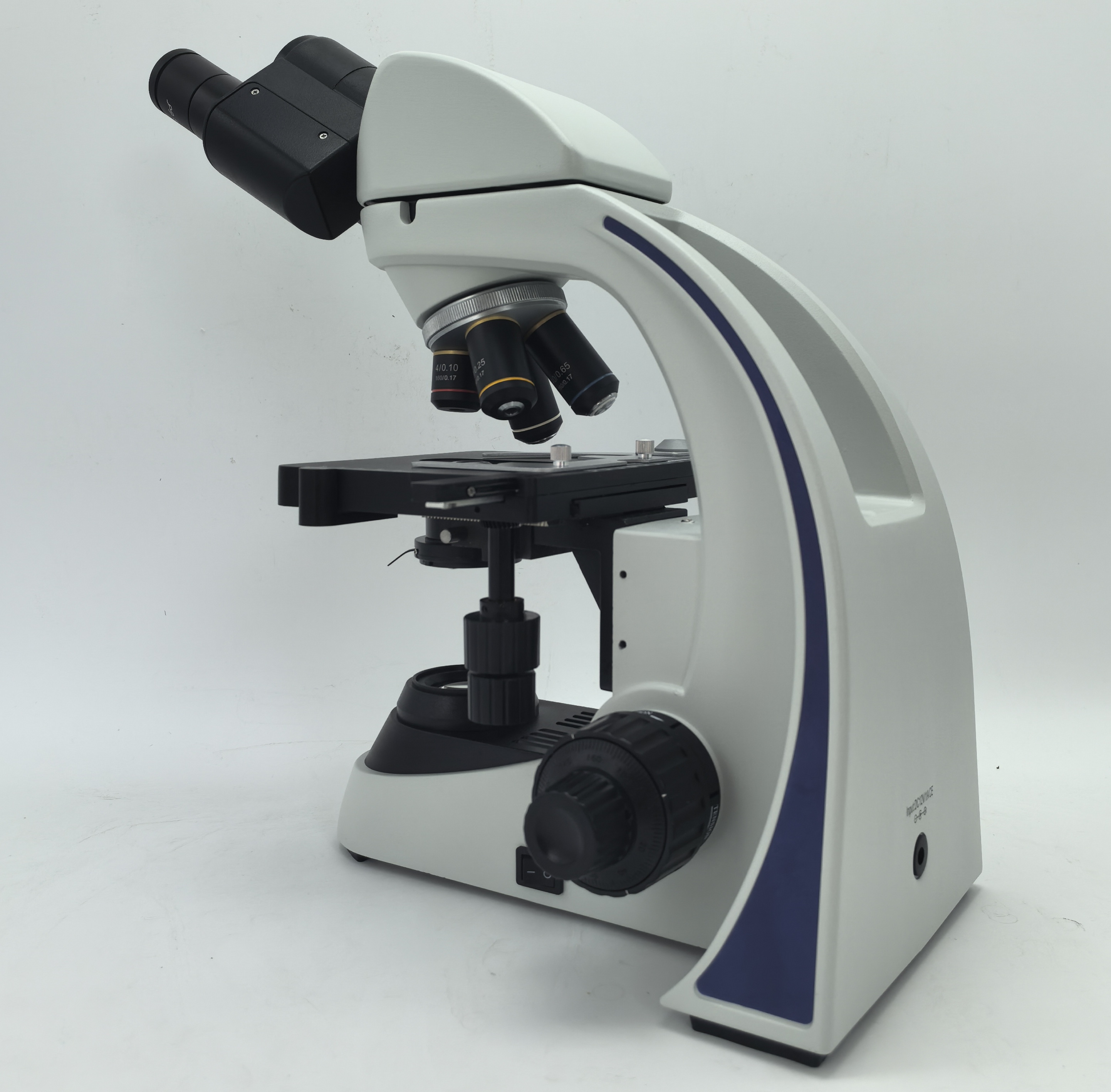

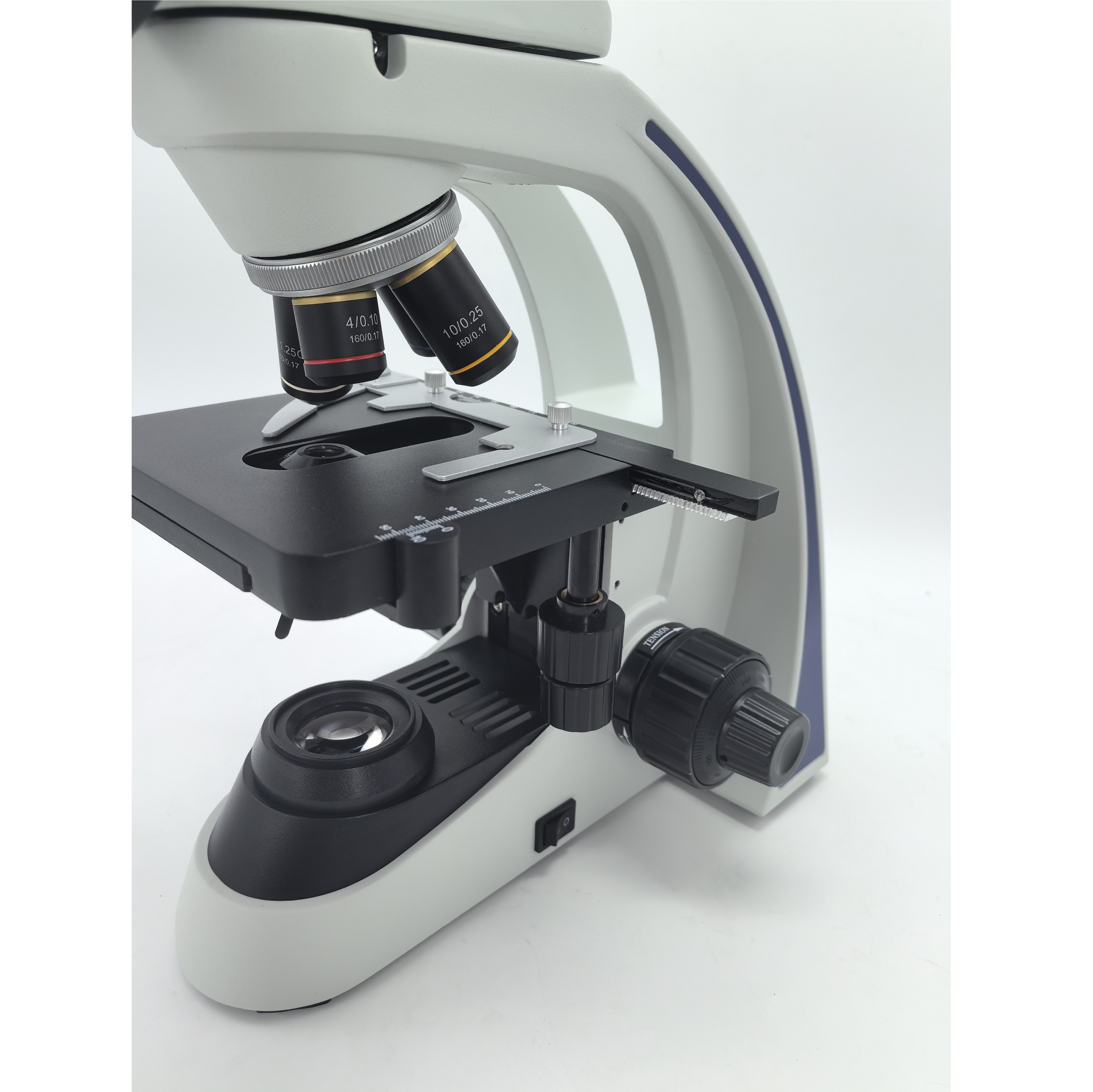

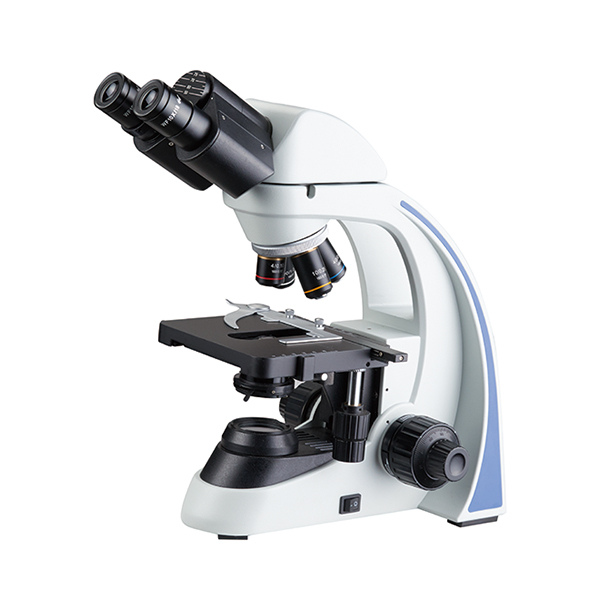

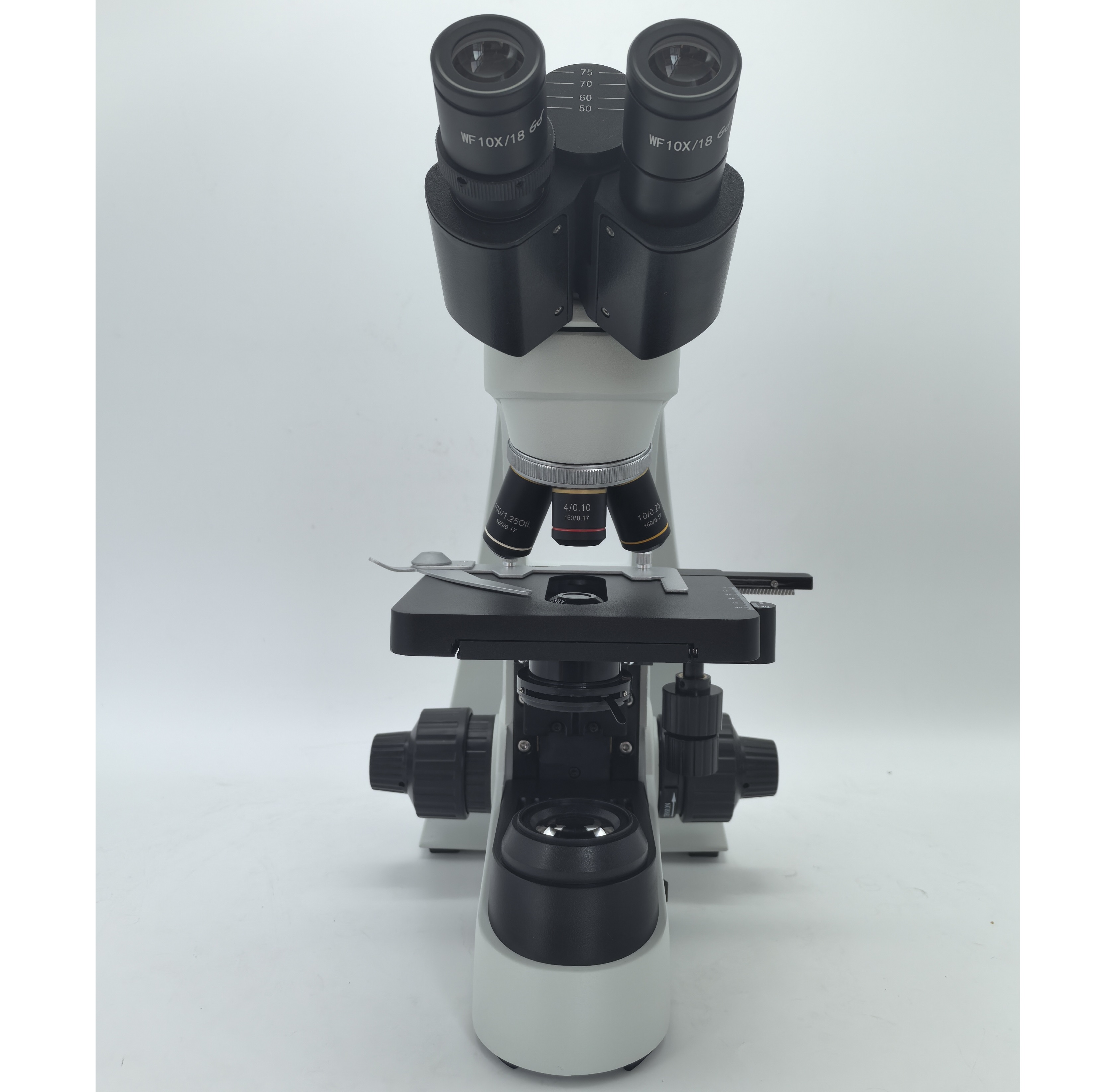

Biological Microscope DG2018
|
Product Name
|
DG2018
|
|
Optical System
|
Finite Color Corrected Optical System
|
|
Viewing Head
|
30°inclined viewing head; interpupillary distance: 50mm~75mm; single diopter adjustable
|
|
Eyepiece
|
High eye point wide filed WF10x/18mm, or plan eyepiece PL10x/18mm(with opinter for option)
|
|
Objective
|
Achromatic objective 4X/10X/40X/100X
|
|
Nosepiece
|
Quadruple nosepiece
|
|
Fram
|
Integrated design, coaxial focus system with upper limited and tension adjustment, coarse range: 28mm; fine precision: 0.002mm;
provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device |
|
Stage
|
140mm*110mm double layers stage, moving range: 76mm*50mm, precision: 0.1mm
|
|
Condenser
|
N.A.1.25 ABBE Condenser and Iris Diaphragm
|
|
Illumination
|
Wide voltage 100V~240V, intensity adjustable by power switch, 3W LED, bulb center preset
|
|
Packing Carton
|
48.5x30.5x55.5cm
|
|
N.W.
|
5kgs
|
|
G.W.
|
6.7kgs
|
